MV Single Phase Voltage Transformer Epoxy Resin Type IEC 60044-1/2

Name: MV Single Phase Voltage Transformer Epoxy Resin Type IEC 6004412
Brand: Chuangyin
Price: 1 USD

Brand Name : Chuangyin

Model Number : JLDZXW2-24

Certification : Test Report

Place of Origin : ShenZhen

MOQ : 1set

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 36,000,00pcs per year

Delivery Time : Within 7 days

Packaging Details : Carton packing for one sets, one set including three piece with Components

Construction : Combined Transformer CT & PT

Technical Standard Accords : IEC 60044-1/2

Application : For Highest Voltage For Equipment

Rated Voltage : 12/28/75KV; 17.5/38/95KV

Installation Site : Outdoor

Material : Epoxy Resin

Contact Now

MV Voltage Transformer 24Kv Outdoor Single-Phase Epoxy Resin Type

1. Introduction:

This single phase combined CT&VT consist of one semi-insulation VT and one CT,VT connected with CT terminal P1,CT series connected with phase A(B,C).Secondary leads in junction box is easy for wiring and testing. Use epoxy resin insulation stunt structure for outdoor installation. Applicable for highest voltage for equipments no more than 24kV for current/voltage measurement in power system.

2. Specification:

Model

Rated Voltage Ratio(kV)

Accuracy Class

Rated Output(VA)

Rated Current Ratio(A)

Accuracy Class

Rated output(VA)

JLDZXW2-24

20/√3/0.1/√3

20/√3/0.1

20/√3/0.12

0.2

0.5

20-40/5

0.2S

0.5S

12.5

Note:Upon request we are glad to offer transformers accordign to other technical specs.

3. Application:

use for highest voltage for equipments no more than 17.5kV,for current/voltage measurement in power system.

4. Features:

1. use high properties iron core to meet high accuracy, big burden etc.

2. use epoxy resin cast insulation structure to improve anti-pollution,anti-moisture etc.

3. use full-sealed cast insulation type.

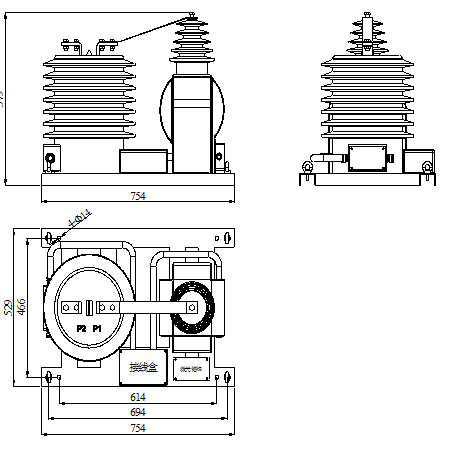

5. Outline drawing:

MV Single Phase Voltage Transformer Epoxy Resin Type IEC 60044-1/2
